Microprocessors Lecture 20

16/32-bit microprocessor architecture and hardware

68000 addressing modes

Register direct

• EA = Rn

               eg.       exg       a3,d0

                         add.l     d2,a5

Memory addressing

1. Indirect
   • EA = (An)


                  eg.       add.w    (a2),d3

                            movea.b   (a0),(al)



2. Indirect with post-increment or pre-decrement
   • EA = (An) ; [An = An + 1] or [An = An - 1]


                  eg.       cmp.l     (a2)-,d5

                            movea.b   (a0)+,(al)+



3. Indirect with displacement
   • EA = (An) + offset


                  eg.       add.b     10(a3),d3



4. Indirect with index and displacement
   • EA = (An) + Xn + offset


                  eg.       movea.l    20(d0:w,a2),a2



5. Absolute
   • EA = (PC) - short address
   • EA = (PC | PC+1) - long address


                  eg.       add.l      0x7100,d3

                            add.l      0x4la713c,d3



6. PC with displacement
   • EA = (PC) + offset


                  eg.       move.l    100(pc),d3



7. Pc with index and displacement
   • EA = (PC) + Xn + offset


                  eg.       movea.l    10(d0,pc),a2



8. Immediate
   • EA = PC


                  eg.       add.w      #0xl2f4,d3



Operand size

               b (byte)   w (word)   l (long)

68000 INSTRUCTION SET (summary)

DATA MOVEMENT

    instruction      operand          action            comments.

     mnemonic         size

  ----------------+--------------+-----------------+-----------------------

       EXG           32 bit          Rn ->  Rm        exchange registers



       LEA           32              EA ->  An        load effective address



       MOVE          8/16/32         EAs -> EAd       replaces LDA,LDX,STA,STX

                                                          etc. in the 6809

                                                      the general move instruction

       SWAP          32           Dn(hi) <-> Dn(lo)

                                                      swap register halves



       MOVEM         16/32         EA -> Rn ... Rm    move multiple registers

                                   Rn ... Rm -> EA

       etc.

ARITHMETIC

        ADD          8/16/32       EA + Dn -> Dn

        CLR		"

        CMP		"

        DIVS         32/16         signed divide    32 bit/16 bit

        DIVU            "          unsigned divide        "

        MULS         16/32         signed multiply  16 bit x 16 bit

        MULU            "          unsigned multiply 	  "

        NEG          8/16/32       2's complement

        SUB		"

        TST             "          compare with zero & set flags

        etc.

LOGICAL

        AND          8/16/32

        OR		"

        EOR		"

        NOT		"

SHIFT & ROTATE

        ASL          8/16/32

        ASR		"

        LSL		"

        LSR		"

        ROL             "	   CARRY is not included in

        ROR             "          the rotation

        ROXL            "          as above, except the X bit

        ROXR            "          is part of the shift registe

BIT

       BTST          1 bit

       BSET		"

       BCLR		"

       BCHG		"	   test & change bit



       the Z flag reflects the state of the bit tested

BCD

       ABCD          8		   add BCD operands

       SBCD          8		   subtract

       NBCD          8		   negate



       all results  are extended to 32 bits

BRANCHES

       Bcc           where 'cc' represents one of the 16 testable conditions

                     eg. BGT, BLS, BMI etc.

                     the offset may be 8 or 16 bits in length.

       DBcc          as above, except .......

                     decrements the specified register, tests and branches

                     if condition met.

       BRA

       BSR

       JMP

       JSR

       RTS

       etc.

SYSTEM

• there are a set of privileged instructions, mainly to manipulate the status register and control interrupts.
• there are further instructions which are in User mode and cause a transfer of control to the Supervisor mode for processing. The most important are:
  • CHK - checks a register against bounds
    ie, zero and the data specified. a software interrupt (exception processing) is generated if the bounds are exceeded
  • TRAP - generates a vectored software interrupt
    a vector is supplied with the instruction (up to 16 possible vectors), which causes a jump to one of the 16 trap routines. In this way, a User program can force a jump to a routine which is run under Supervisor control.

Hardware compatibility with 8-bit devices

An E signal is continuously generated by the 68000, which does the same job as the E signal of the 6809. Since 6800 peripherals do not generate DTACK, a 6800-type bus cycle is timed with respect to the E signal instead.

How does the 68000 know when to execute a 6800-type cycle?

Address decoding is used to reserve some memory locations for synchronous devices. When an address in this range is used by the 68000, the address decoder sends a VPA (valid peripheral address) signal to the 68000 which causes it to synchronise with the E signal.

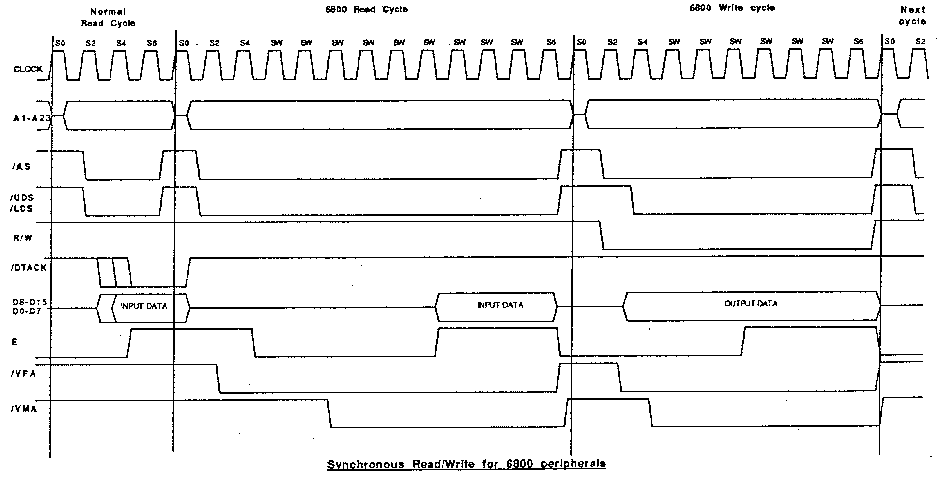

Since the E signal is continuously generated, it can be in any phase with the instruction execution cycle. Therefore, when VPA is asserted, the 68000 waits until the E signal is high and then goes low - marking the start of the E clock cycle.

Thereafter, wait states (SW) are inserted by the 68000 until the end of the E clock cycle, when the 68000 cycle terminates in the usual (asynchronous) way.

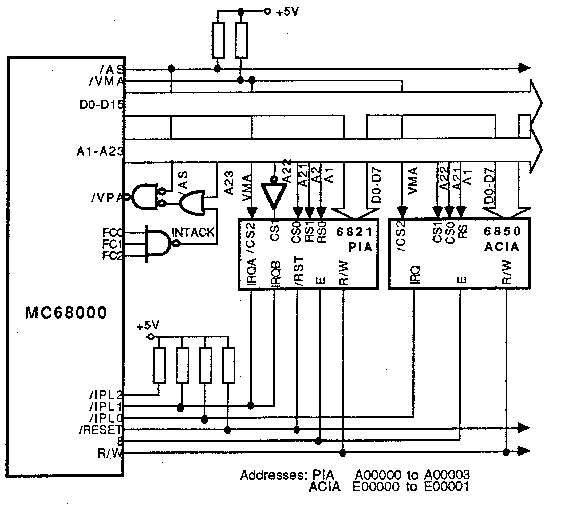

The address decoding can be as simple as in the diagram below, where synchronous peripherals are addressed when A23 is high.

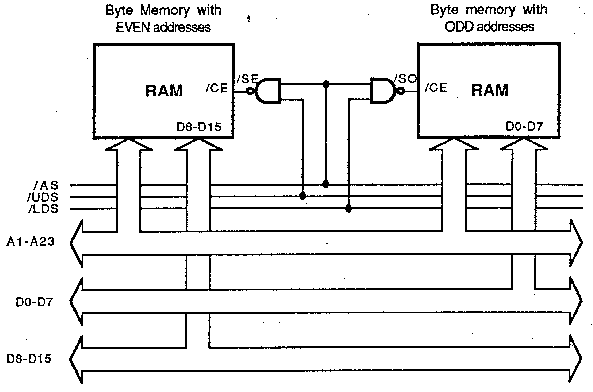

UDS and LDS
