ME
     >I just wondered how far you have come?
     >Is there something to look
     >out for? Any beta's available?
     >

     HIM
     It is almost there.
     I just have to polish the DOS version a bit more.

     ME
     >where did you get your documentation from?

     HIM
     I got it from ftp.csus.edu, it is the archive site
     for the vectrex and has quite a bit of info.

     ME
     >Which OS do you support...

     HIM
     Right now I have a version for Linux/SVGA
     (with sound), SunOS 4.1.x/X11
     (sound is buggy), DOS (no sound at all yet).
     It is all in 'C' and quite portable. I hope to
     get it compiled on other
     platforms when I have it working 100%.

     Mark

Yeah, i began coding a vectrex emu a long time ago,
but then keith wilkins got so well on with his that i
dumped the project altogether.

What does DVE do?

• Microprocessor m6809 (Motorola)
• Versatile Interface Adaper (VIA) R6522 (Rockwell)
• Programmable Sound Generator AY-3-8912 (PSG) (General Instruments)
• Odds and ends that make up the Vectors/analog Hardware (DAC, MUX, LF347...)
• Output on VGA (VESA) card
• Input Joystick via keyboard (analog/digital)
• Lightpen via mouse

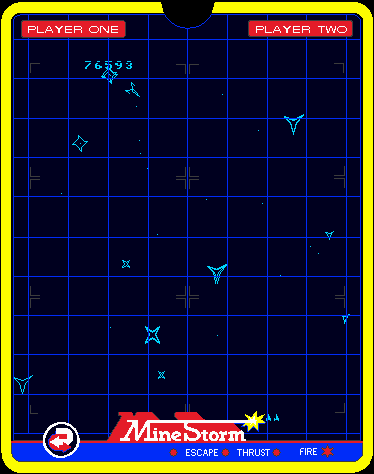

• Overlay via drawing functions or PCX-pictures
• Speed limiter to 100%

What DVE doesn't do?

• Something I don't know yet (randomize in Spike...)
• Look at the DVE Bugs page.

What does DVE require?

• Pentium 100 and fast grafics card to run 100% vectrex speed
• A MS-DOS compatible OS
• VESA capable video drivers (VESA 2.0 + hardware linear framebuffer works best)
• OPL3/Adlib Soundcard for sound support
• Some 'heavy' memory requirements for V1.20 (depending on mode), due to use of large 'buffer'-arrays, guess about 8MB, old version 1.00 much less

1.2
     - Initial release of Malban's DVE changes.
       DVE developed solely by Keith Wilkins!!!

1.2a
     - ALT G screen capture


     - Overlay background colors

     - new color table format
       o 0-15 background for overlays
       o i 1-14 14 vectrex pen colors
       o i+0-i+15 intensities of pen i
       o 240-245 solid colors

1.2b
     - ??? Clay - continous capture version?

1.2c
     - Bugfix, overlay color shades


1.2d
     - Two new *.vol file options (I don't like)

     - ALT W saves game in progress
       (ALT 1 - ALT 9 save different games)

     - ALT L loades saved game
       (1 - 9 load different games)

     - Vectrex.ini:
       restore_on_start=0/1
       save_on_exit=0/1

     - Bugfix, lighpen was broken in 1.2c

1.2e
     - Carousel overlay bug fixed

1.2f - save format changed slightly

     - a bit speed improve I think

     - keys don't react quite as good (well a bit of loss somewhere)

     - old overlay style fixed, though display colors now start with
       pen 1 instead of zero
       pen 1 is white
       pen 2 is red
       ...
       as in the pcx overlays
       pen 0 color 1 -14 are used for erase pen colors,
       pen 0 1 is erase color for pen 1
       pen 0 2 is erase color for pen 2 ...

       because of that some changes must be made to existing *.vol
       overlays, though they shouldn't be dramatic

       and in vectrex.ini
       display_color only ranges from 1 to 14 instead from 0 to 15...
       (old default is 0 now is 1)

     - two new overlay comands (old style)
       border triangle pen intensity x1 y1 x2 y2 x3 y3
       overlay triangle pen x1 y1 x2 y2 x3 y3
       wonder what they do?
       (on demand... didn't test them all that much...)

1.3
     - Clay wrote the following:
          "The emulator has some quirks-- it will display
           vector intensities with the high bit set (the
           Vectrex shows black for any intensity of %1xxxxxxx)"
       fixed!

     - new ini command "force_vesa12", if set to one a
       banked (VESA 1.20 compatible) mode will be forced,
       hopefully that will work with people who have trouble
       with VESA 2.0 modes, though it is about 10% slower...

     - thanks to Clay I added digital sound support
       this can be heard in spike or in clays moon lander
       (or the sample file he gave me :-))
       New ini command "digital_volume", can be set to
       a procentage. The digital volume can be regulated with
       that (with my system, it is quite another volume than
       the non digitized...).
       In order to enable digital samples, a soundblaster/compatible
       card must be used AND the BLASTER environment variable
       must be set!
       Note: If emulation runs to fast, the samples will all
       speed up! The speed settings will not work fine
       with digitized audio, since speed is regulated by
       a timer interrupt (18.2 times per second),
       the emulator runs sort of in small burst if the
       machine is to fast. This has weird effects on
       samples (which are written directly to the DSP DAC).
       I tried setting the timer interrupt up to 1000 times per
       second and synchronizing to that, but it doesn't really
       make any difference.
       What I did was add another ini command:
       "force_single_processor" (boolean, 0 or 1)
       If set that will slow down emulation considerably
       and probably will be to slow (unless you have a fast
       processor :-)).
       Whenever I get a really fast processor, I will add a delay
       to the above single_processor_mode, that should fix the
       speed things with digital samples once and for all,
       since the emulator will than be able to run
       cycle exact at 100% speed...

1.4  - 3d Imager support!
       Finally I had some time to look at it. It sort of works, it is not
       perfect yet, but...
       First some drawbacks...
       I have no 3d imager, neither have I seen one working yet, I
       don't really know what the games look like, so if
       I have some color settings wrong, feel free to do better...
       Right now I'm emulating a fixed speed for the spinning wheel.
       Vectrex usually wants to fiddle with that speed, that is not suported
       yet (dunno if it ever will be...).
       "Narrow Escape" and "Crazy Coaster" work just about fine.
       "Mine 3d" so so, I suspect it to change the rate of the
       color wheel during the startup screen, since I can't find a
       speed setting that will satisfy both the game and the startup...

       There are some new settings for the *.vol files, as e.g.:

       3D_IMAGER_GAME
       WHEEL_TICKS #number#
       COLOR_1_DEGREES #number#
       COLOR_2_DEGREES #number#
       COLOR_3_DEGREES #number#
       IMAGER_MODE #number#

       Most of these are fairly selfexplanatory, but here is what they
       do anyhow.

       3D_IMAGER_GAME - tells the emulator, that the game for this
       *.vol file is a GOGGLE-GAME.

       WHEEL_TICKS #number# - you tell the *.vol file the speed with which
       the wheel has to spin. One tick is 1/1500000 second.
       (vectrex 6809 runs at 1.5Mhz) Good values to start with are
       between 40000 and 60000.

       COLOR_?_DEGREES #number# - these three things are used to
       tell the emulator, what the wheel looks like.
       In degrees how much of the half wheel is covered by the
       corresponding color.
       It is very strongly recomended, that these three
       values add up to 180 degrees, though I don't check it...
       BTW..., COLOR1 is 15, COLOR2 is 13, COLOR3 is 14...

       IMAGER_MODE #number# - number between 0 - 6.
       This determines how the imager is to be emulated to the
       screen.
       At some time there was sort of a discussion going on in some
       newsgroup how the goggles could at all be satisfyingly
       emulated. Well probably can't suit you all, but
       I couldn't think of much more, save to insert some goggles
       to the joystick port... (no, I won't do that!)
       Here is what these 7 modes do:


       # 0 only the 'left' side is displayed, unicolor, therefor
           an overlay picture can be used

       # 1 only the 'right' side is displayed, unicolor, therefor
           an overlay picture can be used

       # 2 red/blue for left and right side, if you have some glasses
           you might be lucky and get a glimps of true 3d :-)

       # 3 only the 'left' side is displayed, in the colors corresponding
           to the wheel colors (overlays must be enabled nonetheless)

       # 4 only the 'right' side is displayed, in the colors corresponding
           to the wheel colors (overlays must be enabled nonetheless)

       # 5 both sides are displayed in colors corresponding
           to the wheel colors (overlays must be enabled nonetheless)
           this most probably looks like a real vectrex seen without
           the helmet on :-)

       # 6 left side is displayed on the leftmost side of the screen
           right side is displayed on the rightmost side of the screen
           (scaling must be set manually to fit...)
           Actually I like this setting a lot...

       Strangly these different mode sometime need different values
       for the other above described settings.
       I don't really know why. You just have to keep experimenting
       with the values a bit. Whatever mode suits you most... you
       probably must find the settings on your own.

BUGS:
     - sound leaves a lot to be desired overall

     - Clean sweep ...



On my pages you can find a NEW release of DVE V2.0beta.

NOTE:
        This version is perhaps the last version!

Much of what I wanted to do for the release is still unfinished, even
the documentary stuff is not all available. Only download this if you have
a FAST system (like 200Mhz Pentium).

OK, whats new for now?

- GUI with integrated help for nearly every program and vectrex itself,
  toggle with SPACE

- perfect sound  (seal library, look in ini file)

- anti aliased lines possible (speed breakdown, look in ini file)
  (allways switch overlay on for anti aliased lines)
  (no color star trek with anti aliased lines)
  (for best emulation switch anti aliased lines on, without some more minor
   faults might be visible)

- useable PC joystick (look in ini file)

- patch for some offset problems (some!!!, not all, not emulated,
  this is a patch (sadly))
  cleansweep and spinball work now (though some other problems might occur)

- one executable for debug and exe

- enhanced monitor and breakpoint abilities

- windows for nearly all emulated vectrex registers and circuits, with online
  help and breakpoint ability

- completly new style ini file

- imager self calibration (incomplete)

- support for middline DAC changes (Pole Position works OK now)

- preleminary support for analog tweaking

For some further information look at the DVE Bugs
 page.

To download:
TWO FILES, you MUST DOWNLOAD BOTH:

vemu1/dve_2b_1.zip (1.8Mb)

vemu2/dve_2b_2.zip (1.3Mb)

The source us also available:

vectrexcs/dves2b_1.zip (0.5Mb)



In order to compile DVE you need:

1. Watcom C/C++ (I use v10.6)
   dunno, guess you have to buy it...

2. The source, get it at:
      vectrexcs/dves2b_1.zip (0.5Mb)
vectrexcs/dves2b_1.zip


3. The binary (since it contains additional files needed for working)
   vemu1/dve_2b_1.zip (1.8Mb)
   vemu2/dve_2b_2.zip (1.3Mb)
vemu1/dve_2b_1.zip

vemu2/dve_2b_2.zip


4. Seal audio library (I use v1.03):
   http://www.egerter.com/seal/seal103.zip (dunno)
http://www.egerter.com/seal/seal103.zip


5. Scitech SVGALIB 6.0
   ftp://ftp.cs.tu-berlin.de/pub/msdos/mirrors/ftp.scitechsoft.com/devel/svbase60.exe (~1.2M)
   ftp://ftp.cs.tu-berlin.de/pub/msdos/mirrors/ftp.scitechsoft.com/devel/svdem60.exe (~1.2M)
   ftp://ftp.cs.tu-berlin.de/pub/msdos/mirrors/ftp.scitechsoft.com/devel/svsrc60.exe (~1.2M)

ftp://ftp.cs.tu-berlin.de/pub/msdos/mirrors/ftp.scitechsoft.com/devel/svbase60.exe

ftp://ftp.cs.tu-berlin.de/pub/msdos/mirrors/ftp.scitechsoft.com/devel/svdem60.exe

ftp://ftp.cs.tu-berlin.de/pub/msdos/mirrors/ftp.scitechsoft.com/devel/svsrc60.exe


Schematics and technical information can be found on many vectrex concerning pages.
e.g.:
http://www.monmouth.com/~pcjohn.
http://website.lineone.net/~raven
or the csus ftp site:
ftp://ftp.csus.edu/pub/vectrex/

Malban

Note emulation is not complete.
And I probably won't do any more stuff to it.

But every known game works nearly perfectly, this includes, but is not
limitted to:

Clean Sweep
Narrow Escape
Pole Position
Vectrex Frogger ( :-) )
Spinball
Cosmic Chasm (you see that DOT (anti aliased enabled))
Star Hawk (that offset in the middle is seen at my vectrex too!)
          (Though in the sourcecode there somehwere still is a patch for that)
Spike (pretty perfect sound actually)
      (spikes randomizing is somewhat awkward :-( )




There are a couple of defines, which produce different emulator versions.

One crucial part is 'anatick.cc', this is where the analog hardware of
vectrex is emulated. Right now, if you switch on anti aliased lines,
there is a constant EMU_FULL_ANALOG declared. This enables some 'more'
analog features, like DRIFTs, integrator offsets (slow going) and DAC offsets.
The drifts include X, Y and Z drifts. The feature is still in test stadium,
so no 100% results can be expected, though some vectrex 'features' can be
examined with it. Note: DAC offsets can be changed online, while GUI is
enabled (and aa) with the keypad +,- keys. Integrator offsets can be changed
online, while in GUI with SHIFT cursor keys. The drifts (X, Y) can be changed
online using CTRL cursor keys. Reset these things to zero with SHIFT END.

If a global constant is set (in the makefile preferable) PATCH_OFFSET,
than the things that desturbs games like cleansweep is patched, that it
works fine. Note: this is no exact emulation, it is a 6522 patch, that
get's correct results, for what this does look in emu6522.c.

Another global constant can be set (though preferable not at the same time
as the above mentioned) ANALOG_CYCLE_PATCH.
I suspect that some control lines are not updated at the same cycle as
VIA. Original emulation had it, that for example BLANK is exactly the
VIA output (control line t6522CB2). I suspect, that the analog hardware
recieves the BLANK impulse some cycles later. I further suspect that
these lines have different 'delays'. With the above option some form
of delay can be enabled for a certain number of analog lines.
For information look in emu6522.h, emu6522.c, pia.cc.
In order for this to work somewhat correctly the option
FORCE_SINGLE_PROCESSOR must be enabled in the ini file.
Note the maximum queue for updates is defined as 5 now, so don't delay for
to long, otherwise the system WILL crash.
The delay values can be changed online, while in GUI with
following keys:
'c'+ -DAC
'z'+ -ZERO
'h'+ -SAMPLE-HOLD
'r'+ -RAMP
'b'+ -BLANK

'C'- -DAC
'Z'- -ZERO
'H'- -SAMPLE-HOLD
'R'- -RAMP
'B'- -BLANK

Some aspects not otherwise correctly emulated can be observed while fiddling
with the above settings. But I think the above things are not all that need
be emulated. For example writting to VIA also has some delay of sometimes
1, 1.5, 2 cycles. In some really time critical situations this IS important,
but as yet not emulated. (I encountered situations like this, while
optimizing Vectrex Frogger)

One other thing not emulated is the correct zeroing. Zeroing is
done at once, the real vectrex takes it's time zeroing (in a e-function
style).

And another... Though it is right that 6809 only reacts to interrupts when it
is in a fetch cycle, the vectrex hardware certainly reacts when the interrupt
occurs, EXACTLY, even half a cycle is possible, since VIA has an
offset, delay of sometimes half a cylce. Some analog lines (mentioned above)
are updated by a VIA interrupt (PB7=RAMP), if that happens, we have again
some inaccuracy!


Imager games.
Though they look like they work correctly (some), this is not
yet fully emulated either. While probably no cycle exact emulation is needed,
as with the analog hardware, there are still some traps.
(btw, the PSG output/input could be done with the cycle delay stuff mentioned
above also)
When I optimzed Keith's original source, we thought that interrupts could only
be made by VIA, through timers or shifts. This is not TRUE.
Lightpen, and 3D imager can both produce interrupts. Both joypads can
produce interrupts as a matter of fact, but only the one from the second
is really interesting.
While not in FORCE_SINGLE_PROCESSOR mode, some interrupts can thus be missed.
(only with the imager, lightpen is 'patched ok').
For narrow escape everything seems to be fine as it is, but especially
3d MineStorm has problems displaying correctly without FORCE_SINGLE_PROCESSOR.
Note further, I have not exactly translated the pulse width into
cycles needed, I just guessed. So if you intend to write your own 3D game,
you better have a vectrex and a 3d imager handy, since other values than the
ones used by the 3 available games are only guess work.
(see sound.c for the guessed values)

(bGblForceSingleProcessor can be toggled in GUI with CTRL F)

Overall I must admitt, that the source looks really awfull. I have not
commented much, and the different inlinings at places really suck.
It is everything but intuitive and readable.

Most includes found in the code can be replaced by function calls, I thought
at a time that there would be a significant speed improvement (which it was),
but nowadays with fast computers it is not all that neccessary anymore, but
still confusingly inserted in the code.

DVE emulates MANY aspects now of a real vectrex, but not everything. I planned
that sooner or later DVE could be used as a development system, but now I
realize, that without rewriting it from the bottom and slowing it down
significantly (since I wouldn't be doing it in assembler), no such thing
would be possible. I won't rewrite the emulator from scratch, it is just
too boring to do stuff again. Thus emulation is incomplete and will remain
incomplete until another picks it up (though I doubt it).

This release is probably my last, sadly incomplete, and slower as intended.
Actually right now I really can not be bothered to go on optimizing stuff.

The executable is compiled with optimization enabled, with PATCH_OFFSET
enabled and ANALOG_CYCLE_PATCH disabled.

Note:
The emulator emulates nearly everything needed to run available games
correctly. But beware to try something different!
So 6522 only is emulated in relation what is needed. Only one SHIFT mode
for example. I thought for example about a different vector drawing routine
using another SHIFT mode... The emulator would only produse garbage at that
stage. Only do stuff like it is supposed to, otherwise BEWARE!
(only relevant for vectrex programmers (rare persons :-))

Note:
The GUI thing is also far from complete, you'll notice soon enough.
Originally I planned to add a couple of more settings and
capabilities, but somehow I got too bored.

But: You can at least new games to the GUI thing if you want without
recompilation, just look at vgames.hlf, this file describes
the help file, that show when the GAME button is pressed, if you
do the same for your 'new' games, as is done for the others,
you shouldn't have difficulties to add your own to the menu.

Same applies to the whole help file system!

NOTE:!!!
The program has somehow difficulties with different compiler
optimization switches.
If I use the full optimizing switches, than random chrashed occur!!!
Therefor only partly optimzed versions are distributed!


Note: there are difficulties with ATI MACH 64 VESA cards.
These are the only cards which have problems with my VESA routines.
I don't as yet know why that is. The problem can be partly solved by
aquiring the newest VESA driver at ATI and fiddling with the settings.

:a run the M64VBE.COM with "vga" option to disable accelerated VGA CRT
settings

b: only in display_mode 0 (640x480 that is)
